BM09DF MDT962B-1A MDT962B-4A FCUA-CT100 compatible LCD display 9 inch for CNC machine replace CRT monitor:
This LCD display is industrial LCD monitors, used to replace the old CRT monitors. Replace Mitsubishi CNC system BM09DF 9" inch mono CRT Monitor. |
1, CRT (cathode ray tube) size 9 inches view angle of 90 degrees Neck Diameter 20mm color: amber-proof standard: T-Band standard;
2, BM09DF analog video signal input (n) 0 - 2.3V line step mode horizontal sync, TTL digital signal (positive polarity) vertical sync field step, TTL digital signal (positive polarity);
3, BM09DF scan frequency line frequency field H = 24Khz frequency V == 50.5Hz;
4, BM09DF video display size horizontal 160mm +/- 3mm vertical 110mm +/- 3mm;
5, input supply AC100-230V (50 / 60Hz);
6, BM09DF VIA standard signal input connector 10 PIN EDGE

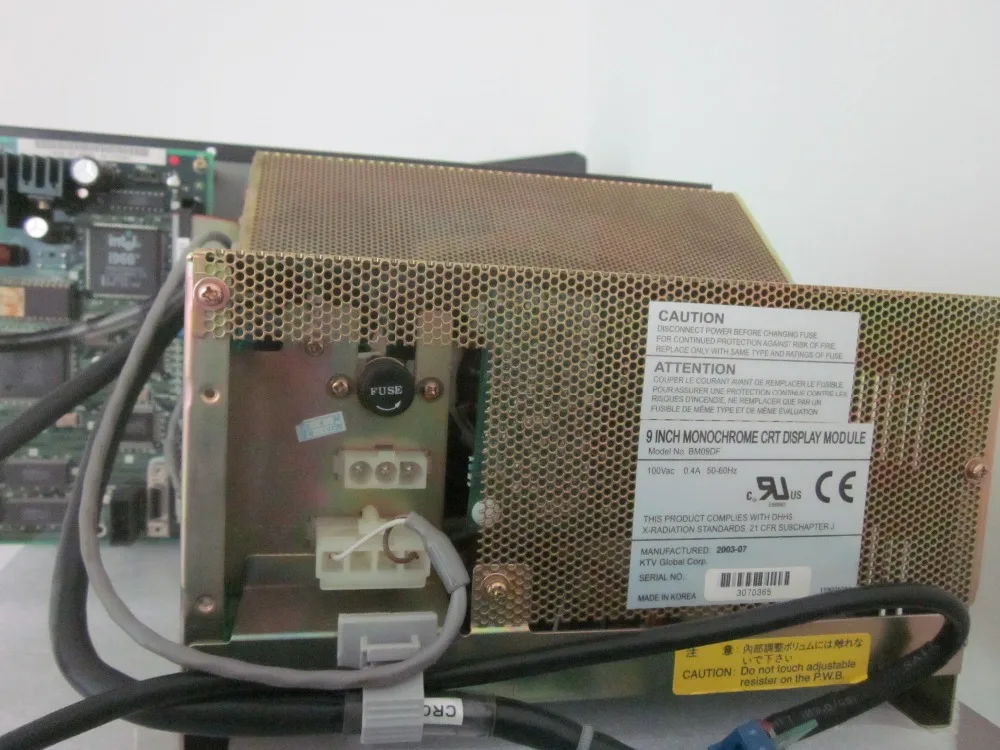

The Old CRT monitor BM09DF as follows:

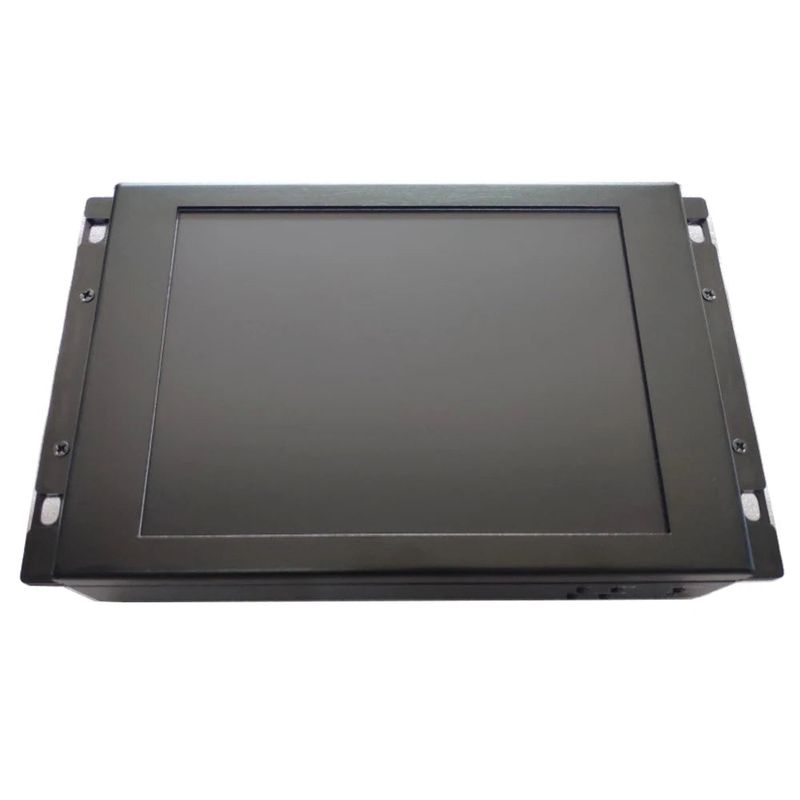

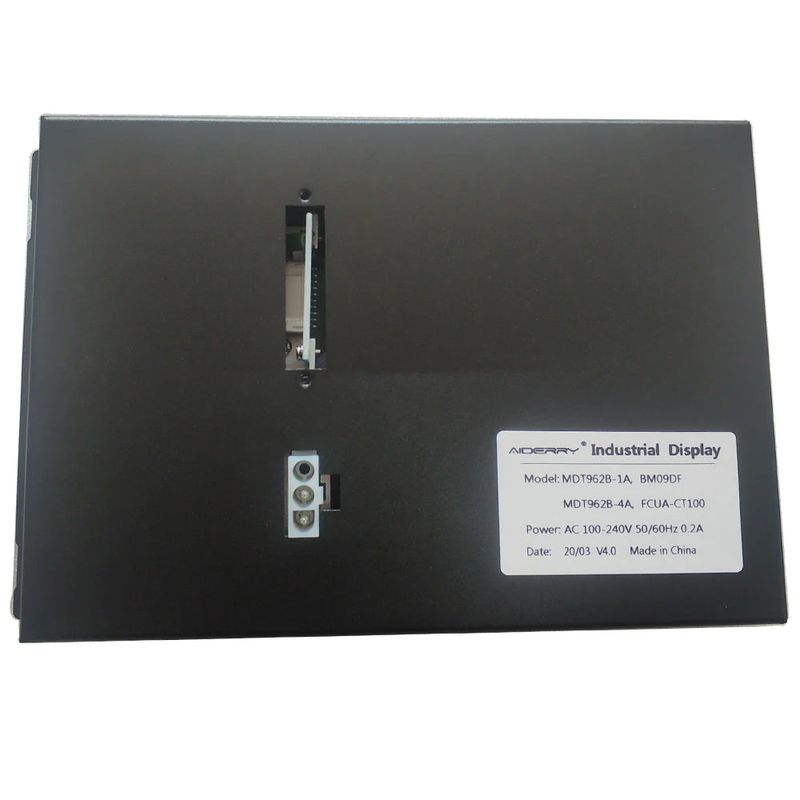

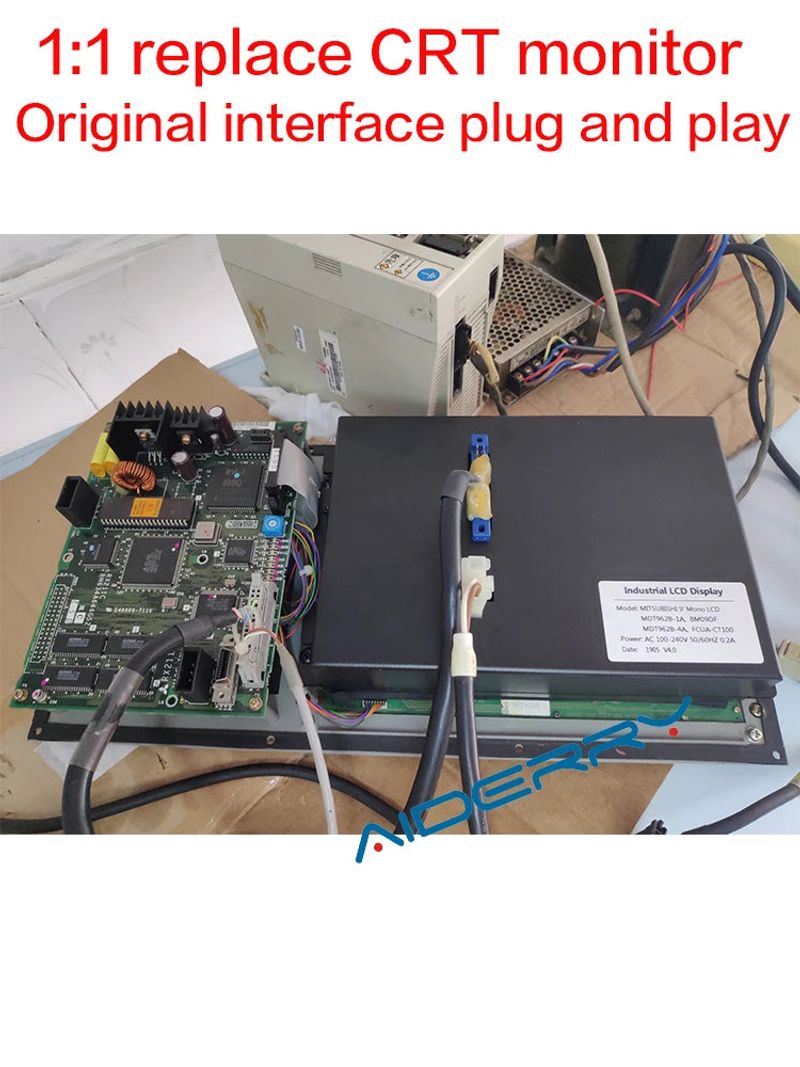

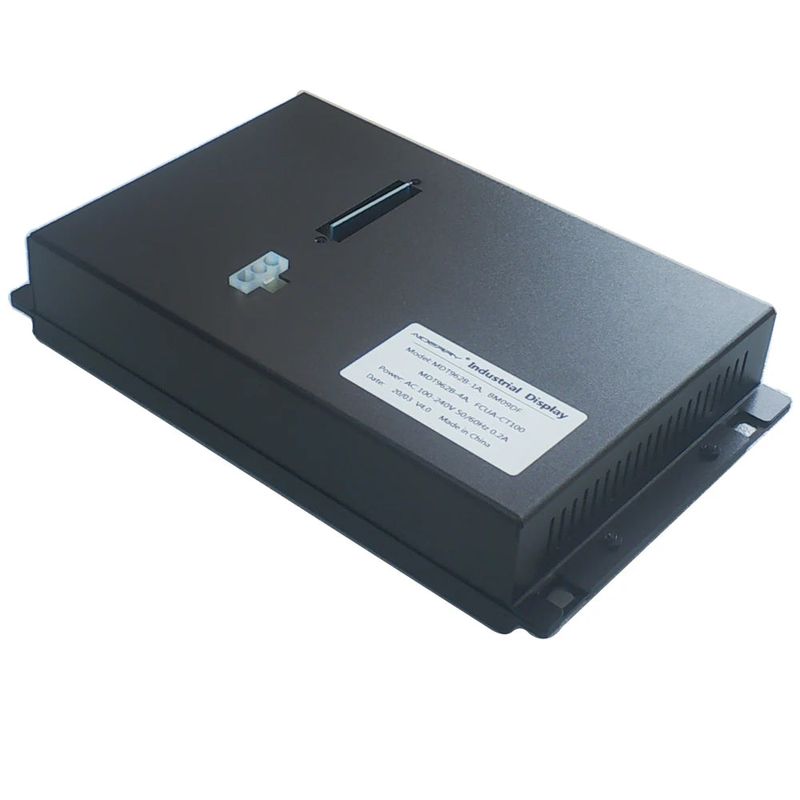

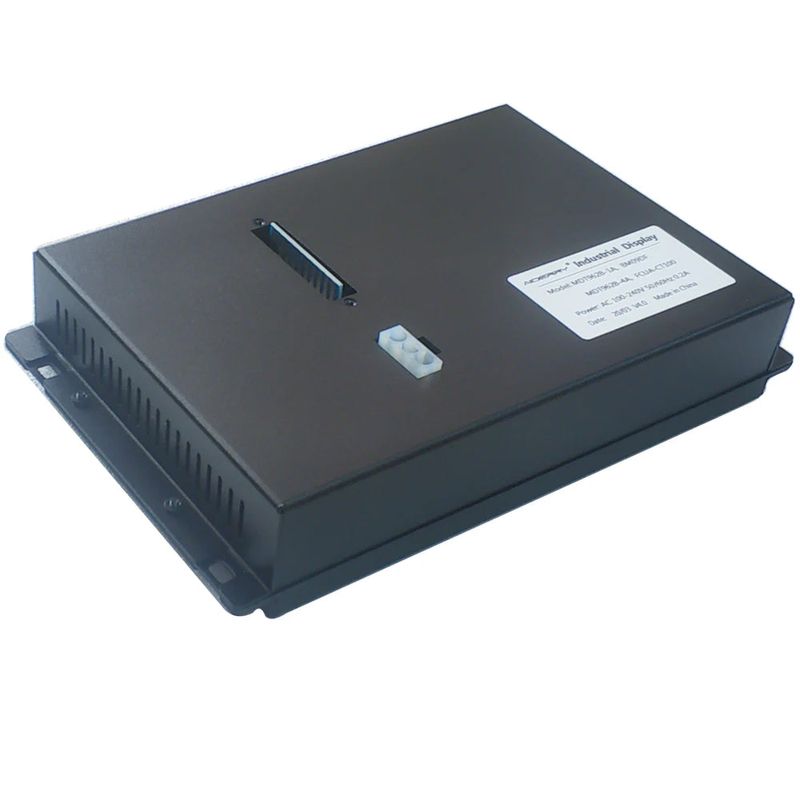

The replacement LCD display as follows:

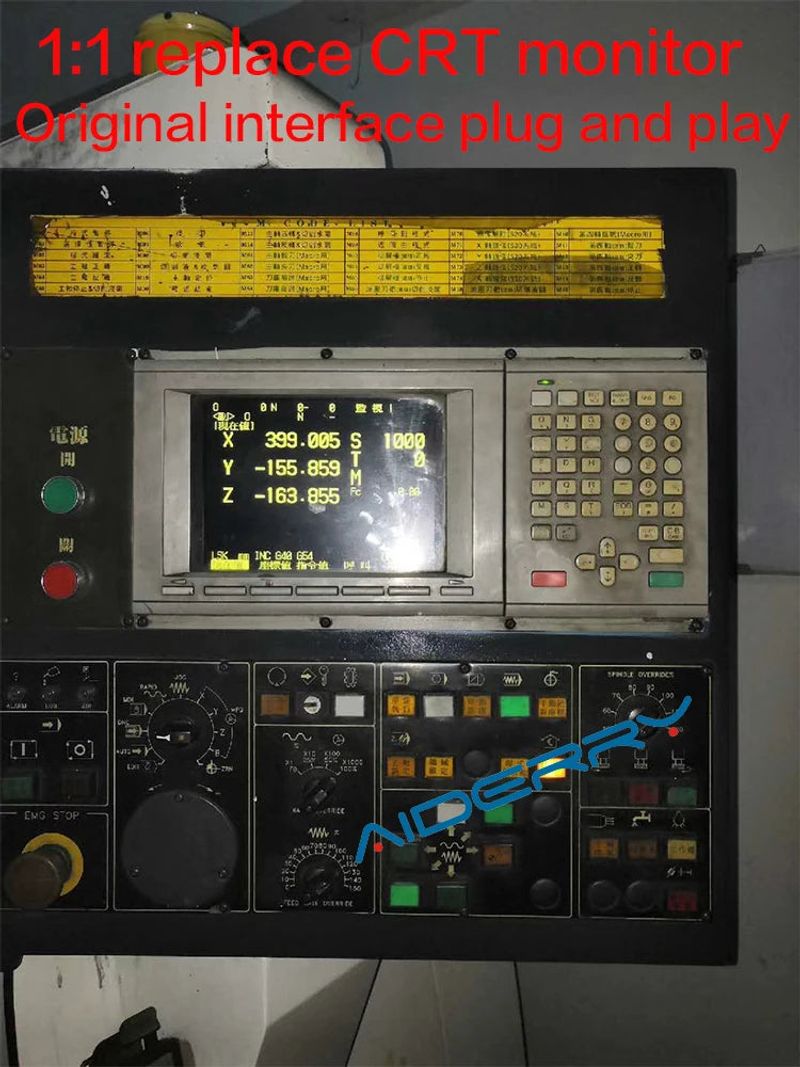

Field effect chart:
