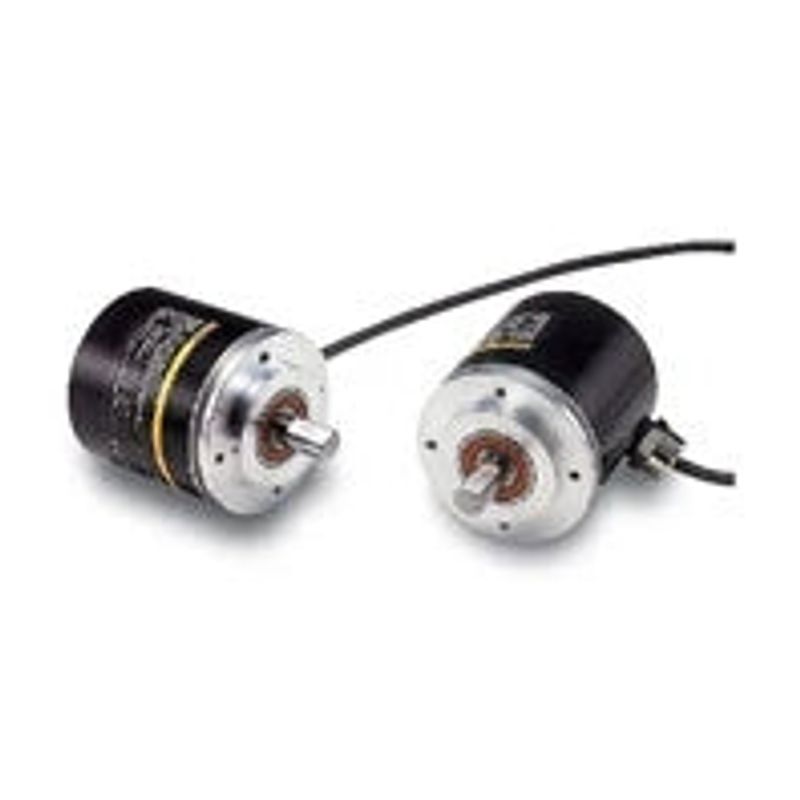

| Model | E6F-CWZ5G | E6F-CWZ5C |
| Power supply voltage | 12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max. |
| Current consumption *1 | 100 mA max. |
Resolution
(pulses/rotation) | 100, 200, 360, 500, 600, 1,000 | 1,000 |
| Output configuration | Complementary outputs *2 | NPN open-collector output |
| Output capacity | Output voltage:
VH = Vcc -3 V min. (Io = 30 mA),
VL = 2 V max. (Io = -30 mA)
Output current: ±30 mA | Applied voltage: 30 VDC max.
Sink current: 35 mA max.
Residual voltage: 0.4 V max.
(at sink current of 35 mA) |
Maximum response
frequency | 83 kHz |
Phase difference between
outputs | 90°± 45° between A and B (1/4 T ± 1/8 T) |
Rise and fall times of
output | 1 μs max. (Cable length: 2 m, Output
current: 30 mA) | 1 μs max. (Cable length: 2 m, Control
output voltage: 5 V, Load resistance: 1 kΩ) |
| Starting torque | 10 mNm max. at room temperature, 15 mNm max. at low temperature |
| Moment of inertia | 3 ×10-6 kgm2 max.; 1.5 × 10-6 kgm2 max. at 600 P/R max. |
| Shaft loading | Radial | 120 N |
| Thrust | 50 N |
| Maximum permissible speed | 5,000 r/min |
| Protection circuits | Power supply reverse polarity protection, Output load short-circuit protection |
| Ambient temperature range | Operating: -10 to 70°C (with no icing), Storage: -25 to 85°C (with no icing) |
| Ambient humidity range | Operating/Storage: 35% to 85% (with no condensation) |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case |
| Vibration resistance | Destruction: 10 to 500 Hz, 150 m/s2 or 2-mm double amplitude for 11 min 3 times each
in X, Y, and Z directions |
| Shock resistance | Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions |
| Degree of protection | IEC 60529 IP65, in-house standards: oilproof |
| Connection method | Pre-wired Models (Standard cable length: 2 m) |
| Material | Case: Zinc alloy, Main unit: Aluminum, Shaft: SUS420J2 |
| Weight (packed state) | Approx. 400 g |
| Accessories | Instruction manual
Note: Coupling, mounting bracket and hex-head spanner are sold separately. |
