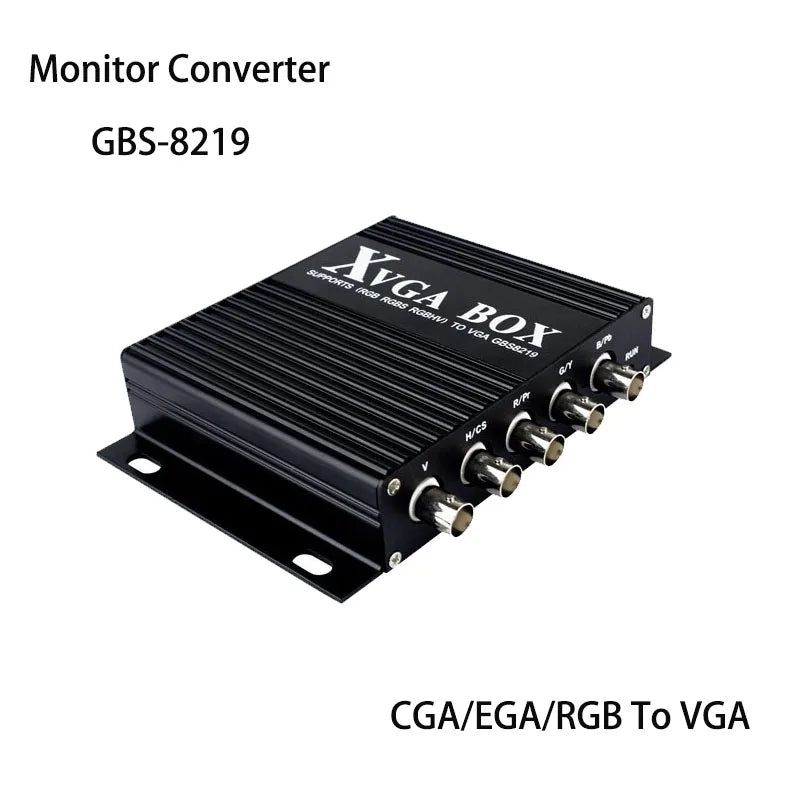

Industrial Monitor Converter GBS-8219 Support CGA/EGA/RGB To VGA For CNC Display

$485.77 $328.22

Quantity

Features:

- Feature specifications

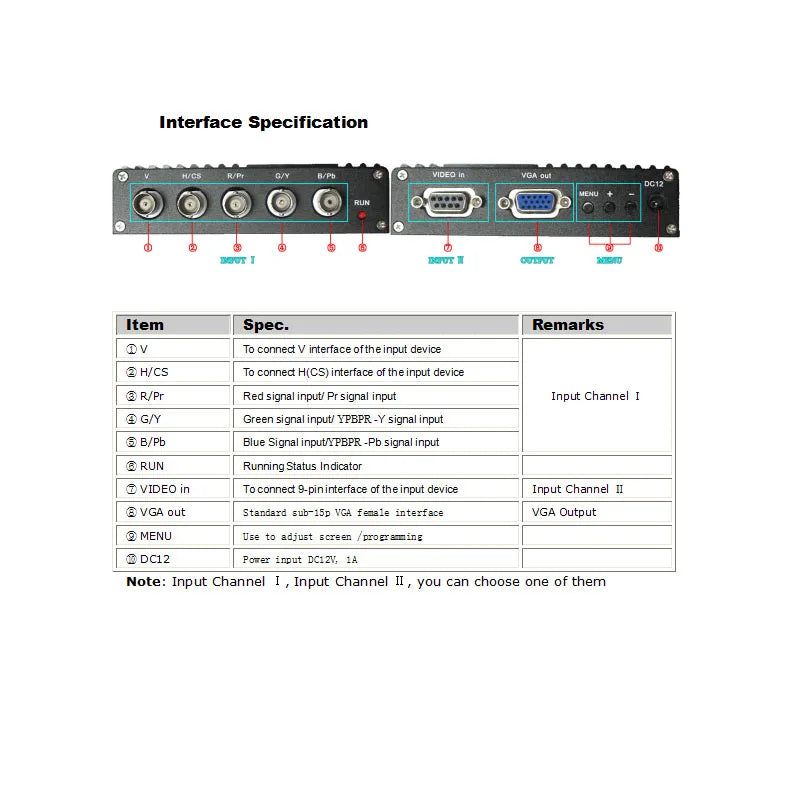

Input	Signals	MDA、CGA、EGA、RGB、RGB Sog、RGBS、RGBHV、YPbPr
	Interface	9pin、3pin、6pin、14pin、20pin、25pin
	Horizontal Frequency Rate(H)	12kHz to 40kHz automatically recognized
Output	Supports	15pin VGA，Resolution:800*600/60HZ or custom-resolution
Output	Interface	D-Sub 15 PIN standard VGA port
Power	DC 12V 1.0A

Note:

1.YPbPr = YUV

2.Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized.

3.Support RGB and YPbPr

4.Support Interlaced Scanning and Line by Line Scanning.

5.Support Vertical Resolution from line200 to line 600 automatically recognized.

6.Support variable Horizontal Resolution automatically recognized。

7.Support RGBHV (separate sync) ,RGBS (composite sync), automatically recognized

8.Output resolution: 800*600/60Hz standard VGA or custom-resolution.

CUSTOMIZED LCD DISPLAY:

We provide customized LCD,if user need,please provide

Original CRT MONITOR INTERFACE definition and DETAILED signal parameters, monitor size, monitor model, system parameters and other information.

If you have any questions,please feel free to contact us
