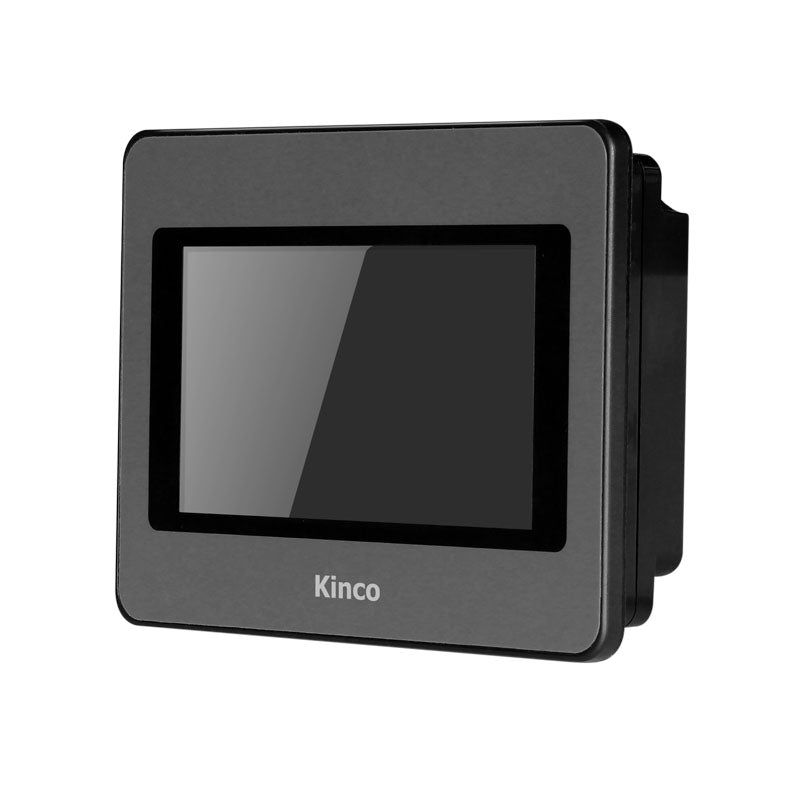

Kinco HMI 4.3 inch MT4230TE touch screen, original stock, 18 months warranty

$289.34 $180.84

  • Mainstream Performance: streamlining LINUX kernel, high-speed CPU, communications faster, program running more smoothly.
  • Energy-saving: Adjustable LED backlight, suitable for energy-saving.
  • Stable and reliable: power isolation design, utmost to eliminate the failure, freezen and extra service cost caused by interference.
  • Powerful software: Kinco HMIware, free configuration software, easy to use, full featured.

  • Performance specification

    Display 4.3" TFT(16:9W)
    Resolution 480*272
    Color 65536
    Backlight LED
    Brightness 250cd/m2
    Backlight life 50000 hours
    Touch Panel 4-wire precision resistance network
    Processor 32-bit 800MHz RISC
    Memory 128M FLASH + 64M DDR2
    Expandable memory None
    Recipe memory & RTC 512KB + RTC
    Printer port USB Slave/Serial port
    Ethernet MT4230TE support
    Program download Mini USB SLAVE/Serial port

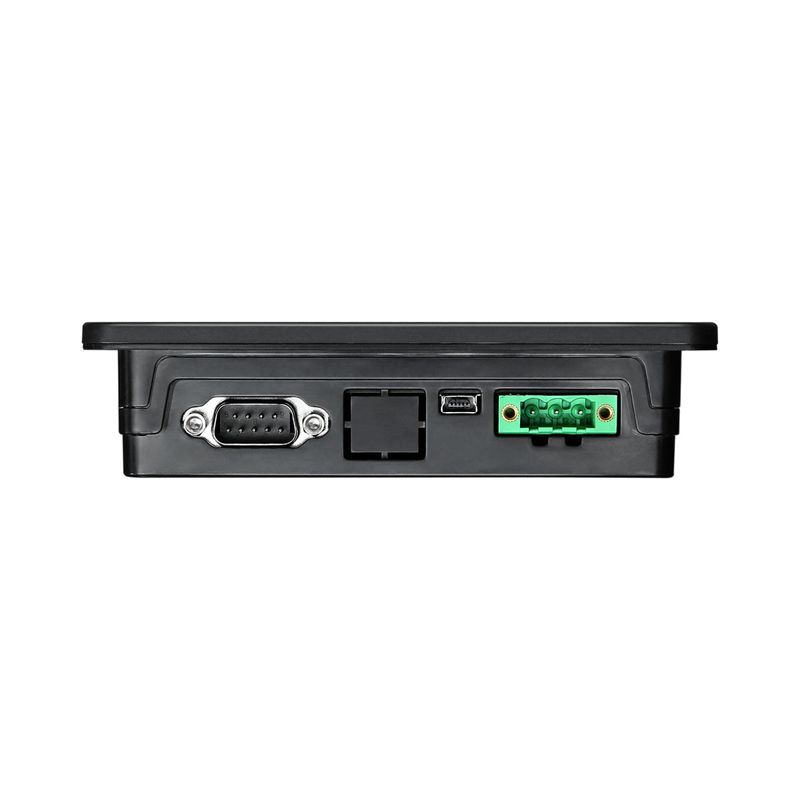

    COM port COM0:RS232/RS485-2/4, COM2:RS232

    Dimensions (Unit:mm)

    Electrical specification

    Rated power 2.4W
    Rated voltage DC24V
    Input range DC12V~DC28V
    Power down allowe <3ms
    Insulation resistance Greater than 50MΩ@ 500V DC
    Dielectric strength test 500V AC 1 minute

    Structure specification

    Shell color Black
    Shell material ABS
    Dimensions(mm) 132×102×33mm
    Cutout size(mm) 119×93mm
    Weight 0.21 Kg

    Environment specification

    Operating temperature 0～50℃
    Operating humidity 10～90% non-condensing
    Storage temperature -10～60℃
    Storage humidity 10～90% non-condensing
    Shockproof test 10～25Hz (X, Y, Z direction, 2G, 30 minutes)
    Cooling method Natural air cooling

    Certification

    Degree of protection IP65 (front panel)
    CE certification Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards
    FCC compatibility Complies with FCC Class A
