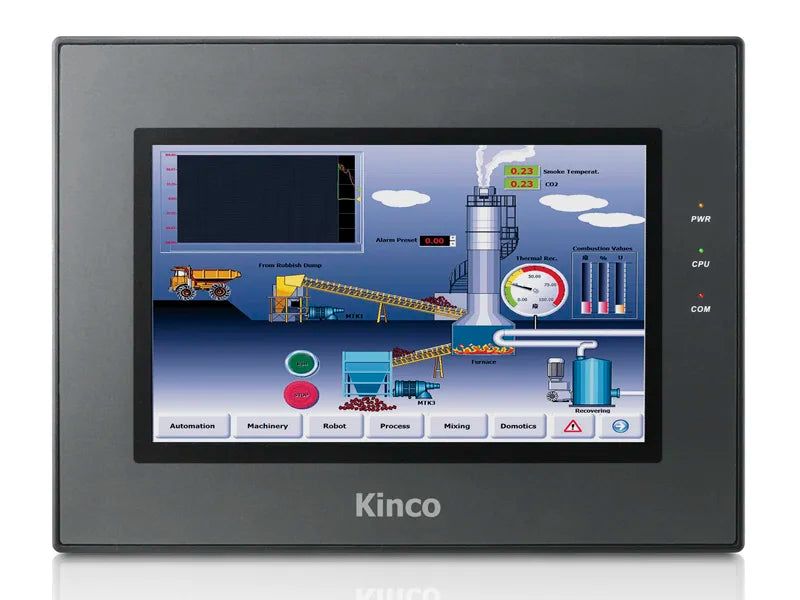

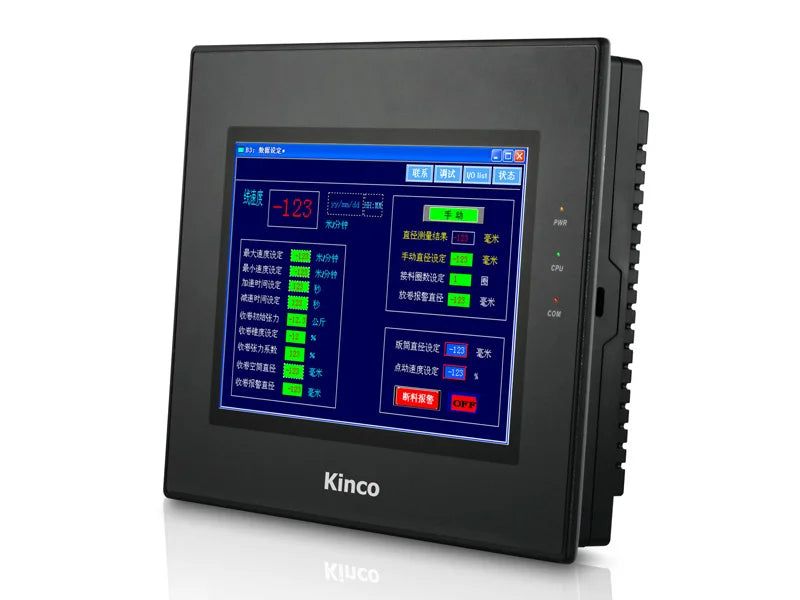

Kinco MT4512T,MT4512TE 10.1" TFT 800*480 HMI SCREEN PANEL ,HAVE IN STOCK,FASTING SHIPPING

Kinco MT4512T,MT4512TE 10.1" TFT 800*480 HMI SCREEN PANEL ,HAVE IN STOCK,FASTING SHIPPING

$0.00 $256.95
Color
MT4512T
MT4512TE



Kinco MT4512T,MT4512TE 10.1" TFT 800*480

HMISCREEN PANEL ,HAVE IN STOCK,FASTING SHIPPING



Performance specification  For MT4512T HMI


Display 10.1" TFT
Resolution 800*480
Color 65536
Backlight LED
Brightness 320cd/m2
Backlight life 50000 hours
Touch Panel 4-wire precision resistance network
Processor 32-bit 800MHz RISC
Memory 128M FLASH + 64M SDRAM
Expandable memory 1 USB Host
Recipe memory & RTC 512KB + RTC
Printer port USB Host/Slave/Serial port
Ethernet None
Program download USB /Serial port
COM port COM0:RS232/RS485-2/4 COM2:RS232

Performance specification  For MT4512TE HMI



Display 10.1" TFT
Resolution 800*480
Color 65536
Backlight LED
Brightness 320cd/m2
Backlight life 50000 hours
Touch Panel 4-wire precision resistance network
Processor 32-bit 800MHz RISC
Memory 128M FLASH + 64M SDRAM
Expandable memory 1 USB Host
Recipe memory & RTC 512KB + RTC
Printer port USB Host/Slave/Serial port
Ethernet Support
Program download USB /Serial port/Ethernet port
COM port COM0:RS232/RS485-2/4 COM2:RS232

Electrical specification



Rated power 8W
Rated voltage DC24V
Input range DC12V~DC28V
Power down allowe <5ms
Insulation resistance Greater than 50MΩ@ 500V DC
Dielectric strength test 500V AC 1 minute

Structure specification



Shell color Black
Shell material ABS
Dimensions(mm) 310×230×58mm
Cutout size(mm) 298×218mm
Weight 2 Kg



Dimensions (Unit:mm)

MT4512T-03
