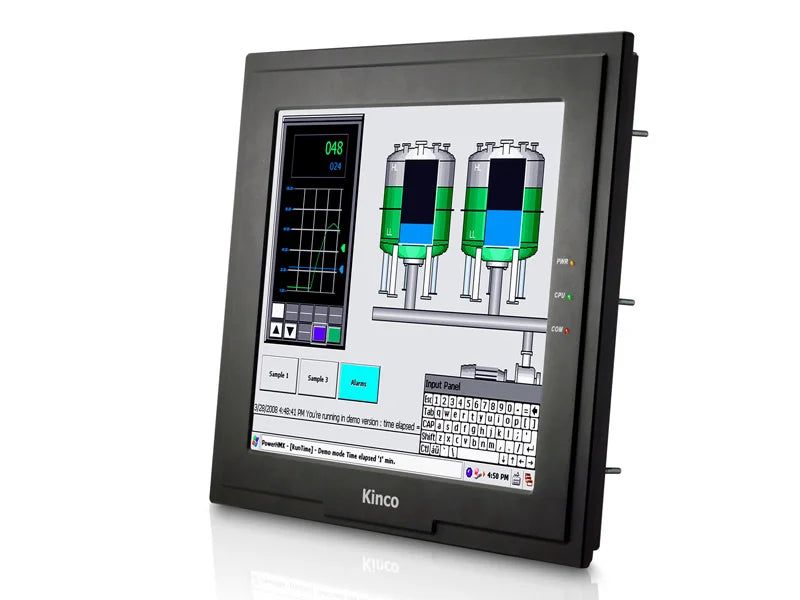

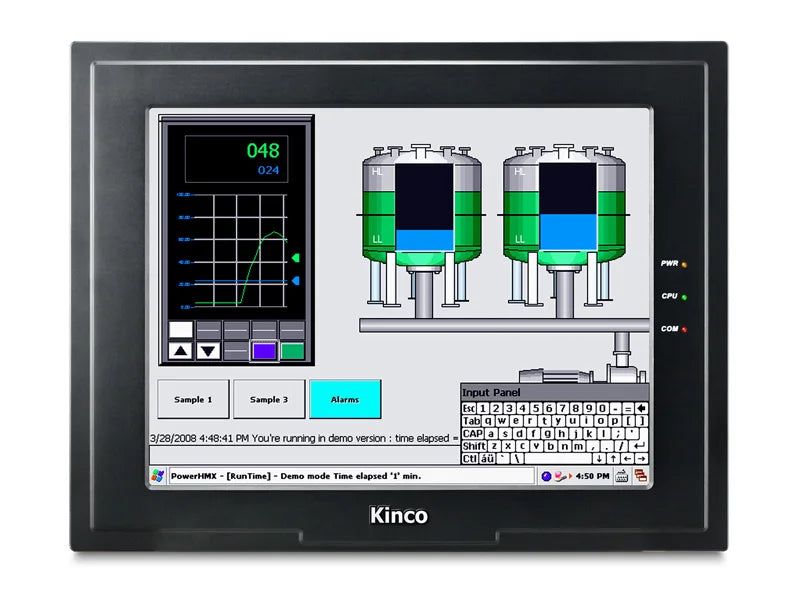

Kinco MT5720T,MT5720T-DP,MT5720T-CAN,MT5720T-MPI 15" TFT 1024*768 HMI SCREEN PANEL ,HAVE IN STOCK,FASTING SHIPPING

Kinco MT5720T,MT5720T-DP,MT5720T-CAN,MT5720T-MPI 15" TFT 1024*768 HMI SCREEN PANEL ,HAVE IN STOCK,FASTING SHIPPING

$0.00 $2289.95
Color
MT5720T
MT5720T-DP
MT5720T-CAN
MT5720T-MPI



Kinco MT5720T,MT5720T-DP,MT5720T-CAN,MT5720T-MPI 15" TFT HMI SCREEN PANEL
HAVE IN STOCK,FASTING SHIPPING
MT5720T-02


Performance specification



Type Size Resolution Port Ethernet Extension storage Extension communication Printing Price(RMB)
MT5620T-CAN 12.1" 800*600 COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232，（内置隔离） √ 1 SD Card, 2 U Disks CANOPEN USB/Serial port
MT5620T-MPI 12.1" 800*600 COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232，（内置隔离） √ 1 SD Card, 2 U Disks MPI Expansion Board USB/Serial port
MT4720TE 15" 1024*768 COM0:PLC RS232/PLC RS485-2/4, COM1:PLC RS232/PLC RS485-2/4, COM2:PC/PLC RS232 √ 1 USB Host, 1 SD Card - USB Host/Slave/Serial port
MT5720T 15" 1024*768 COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 √ 1 SD Card, 2 U Disks - USB/Serial port
MT5720T-DP 15" 1024*768 COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 √ 1 SD Card, 2 U Disks PROFIBUS-DP USB/Serial port
MT5720T-CAN 15" 1024*768 COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 √ 1 SD Card, 2 U Disks CANOPEN USB/Serial port
MT5720T-MPI 15" 1024*768 COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232 √ 1 SD Card, 2 U Disks MPI Expansion Board USB/Serial port
GH150E 15" 1024*768 COM0:RS232/RS485-2W/4W; COM1:RS232/RS485-2W/4W; COM2:RS232; COM3:RS485-2W Built-in isolation for all serial ports √ 1 USB Host, 1 SD Card - USB Host/Serial port
GL150E 15" 1024*768 COM0:RS232/RS485/RS422; COM2:RS232; √ 1 USB Host - USB Host/Serial port






Performance specification for MT5720T



Display 15" TFT
Resolution 1024*768
Color 65536
Backlight 2CCFL
Brightness 250cd/m2
Backlight life 50000 hours
Touch Panel 4-wire precision resistance network
Processor 32-bit 520MHz RISC
Memory 16M FLASH + 32M SDRAM
Expandable memory 1 SD Card, 2 U Disks
Recipe memory & RTC 512KB + RTC
Printer port USB/Serial port
Ethernet 10/100 Base-T
Audio Interface 1 Audio Output Interface
Video Interface 2 PAL Signal Video Input Interface,BNC Connector
Program download 1 USB SLAVE Port
COM port COM0:RS232/RS485-2/4, COM1:RS232/RS485-2/4 COM2:RS232
Expansion Port None support

Electrical specification



Isolated power supply Built-in
Rated power 16.8W
Rated voltage DC24V
Input range DC21V~DC28V
Power down allowe <3ms
Insulation resistance Greater than 50MΩ@ 500V DC
Dielectric strength test 500V AC 1 minute



Structure specification



Shell color Black
Shell material metal
Dimensions(mm) 406.5×313.5×48.3mm
Cutout size(mm) 387.5×294.5mm
Weight 5.1 Kg



Dimensions (Unit:mm)



MT5720T,draft
