MD214L Kinco 4.3"FSTN TEXT DISPLAY PANEL ,HAVE IN STOCK,FASTING SHIPPING

MD214L Kinco 4.3"FSTN TEXT DISPLAY PANEL ,HAVE IN STOCK,FASTING SHIPPING

$0.00 $99.95

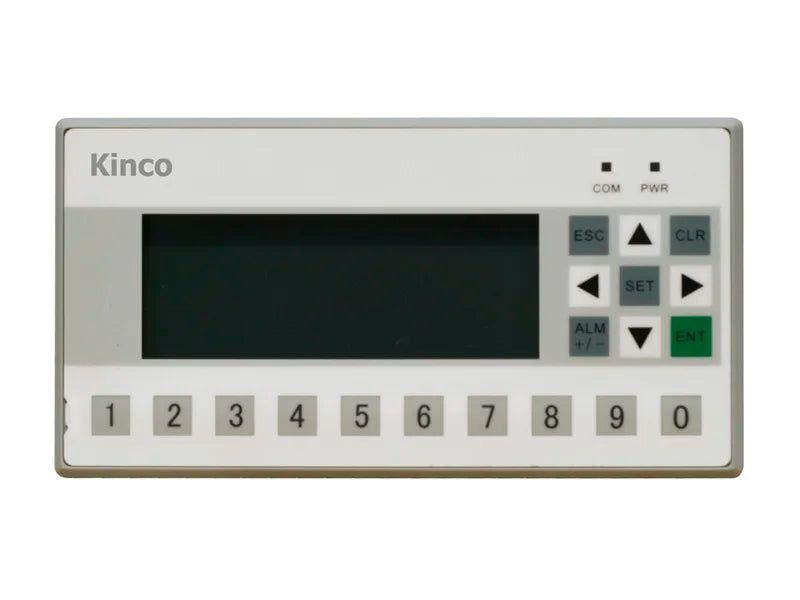

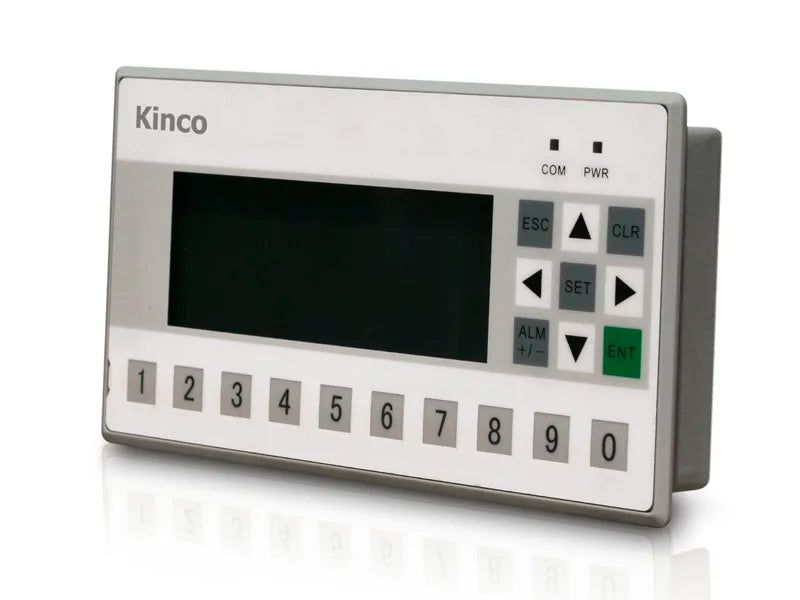

MD214L Kinco 4.3"FSTN TEXT DISPLAY PANEL

MD214L-02

Technical parameters



Shell color Silver white
Display 4.3"FSTN
Resolution 192 x64 Pixel（Supporting Display of 4 Lines 12 Chinese Characters）
Color Monochromatic
Brightness 97 cd/m²
Contrast Adjustable by Potentiometer
Backlight White LED
LCM life time Greater than 50,000 Hours at 25±2℃, 65±10%RH
Panel Non-touch screen
CPU 8-bit Processor
Memory 64KB Flash ROM
Recipe memory None
RTC Support(300PPM precision)
Function key 19 Keys, Customizable(Including 10 Numeric Input Keys)
COM port COM0: PC RS232 & PLC RS485/422 & PLC RS232
CE EN6100-6-2:2005, EN6100-6-4:2007

Environmental conditions



Power supply 12~28 VDC
Current consumption Max150mA @ 24VDC
Interference immunity test Voltage 1500Vp-p，Pulse cycle 1us，Duration 1s
Dielectric strength 500V AC (1 min)
Isolation resistance Exceed 10M at 500V DC
Vibration endurance 10 to 25 Hz(x, y, z Direction, 2G, 30 Minutes)
Protection class IP65 Front Panel
Operating temperature 0 ～ 50 °C
Storage temperature -20 °C ~70 °C
Operating humidity 20 ～ 90 % RH (non-condensing)
Enclosure Engineering Plastic ABS + PC
Dimensions(W x H x D) 175 × 90× 26mm
Display size(W x H) 101 × 36 mm
Panel cutout dimension 165 × 78mm
Cooling method Natural Air Cooling
Weight 0.3 Kg

​

We will tested this package before shipping !!!
