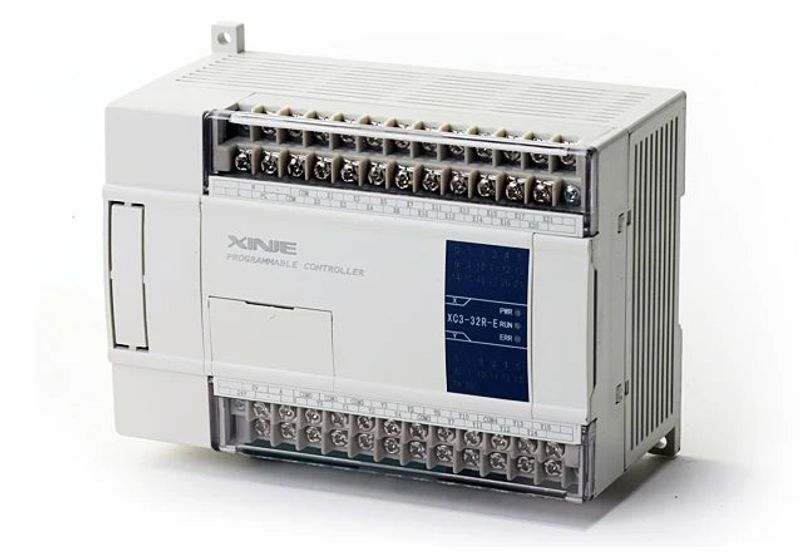

| 12 DI/12 DO, 12 relay outputs (R) or transistor outputs transistor AC220 or DC24V power supply, without expansion module,
can not extend with BD board, without clock, support power-off retentive, Support basic logic control and data operation. General Specification
Item | Specification | Insulation Voltage | Above DC 500V 2MΩ | Noise Resistance | 1000V 1uS pulse for 1 minute | Environment Temperature | 0℃~60℃ | Ambient Humidity | 5%~95% | COM 1 | RS-232, be connected to host machine or HMI for programming or debugging | COM 2 | RS-232 or RS-485，network or connect to intelligent instrument, inverter, etc. | Installation | M3 screw fixed or DIN46277 (35mm width) guide rail installation | Grounding | The third type grounding (Never perform common grounding with strong power system) | Functional Specification
Item | Specification | Program Operation Mode | Circulation scanning mode, timing scanning mode | Program Mode | Instructions and ladder chart | Dispose Speed | 0.5us | Power Failure Holding | FlashROM | User Program’s Capacity | 32K | I/O Points | 12 input points，12 output points | Output Format | Relay | Power Supply | AC220V | Interior Coil’s Points (M) | 448 points | | Timer（T） | Points | 80 points | Specification | 100mS timer：set time 0.1~3276.7 seconds
10mS timer：set time 0.01~327.67 seconds
1mS timer：set time 0.001~32.767 seconds | | Counter（C） | Points | 48 Points | Specification | 16 bits counter:：Set value K0~32767
32 bits counter：Set value K0~2147483647 | Data Register（D） | 406 characters | FlashROM Register（FD） | 510 characters | High-speed Count Format | - | Timing Scanning Interval Setting | - | Password Protection | 6 characters ASCII | Self-diagnose Function | Power on self-diagnose, monitor timer, grammar check | |
